library(tidyverse); packageVersion('tidyverse')
library(reshape2); packageVersion('reshape2')
library(ampvis2); packageVersion('ampvis2')
library(phyloseq); packageVersion('phyloseq')
library(microbiomeMarker); packageVersion('microbiomeMarker')
library(microbiome); packageVersion('microbiome')
library(RColorBrewer); packageVersion('RColorBrewer')
library(vegan); packageVersion('vegan')
library(ggpubr); packageVersion('ggpubr')
library(MicEco); packageVersion('MicEco')
library(RVAideMemoire); packageVersion('RVAideMemoire')Stage-specific microbiota transitions throughout black soldier fly ontogeny
Abstract
This website provides reproducible documentation for the methods and tools used to process and analyze the sequence data from our study on the stage-specific microbiota throughout black soldier fly ontogeny.
Publication
Klammsteiner, T.†, Heussler, C.D.†, Stonig, K.T., Insam, H., Schlick-Steiner, B.C.‡, Steiner, F.M.‡ (2026). Stage-specific microbiota transitions throughout black soldier fly ontogeny. Microbial Ecology 89(41). doi: 10.1007/s00248-025-02691-1
equal contribution as †first and ‡senior authors.
Data generation
DNA extraction

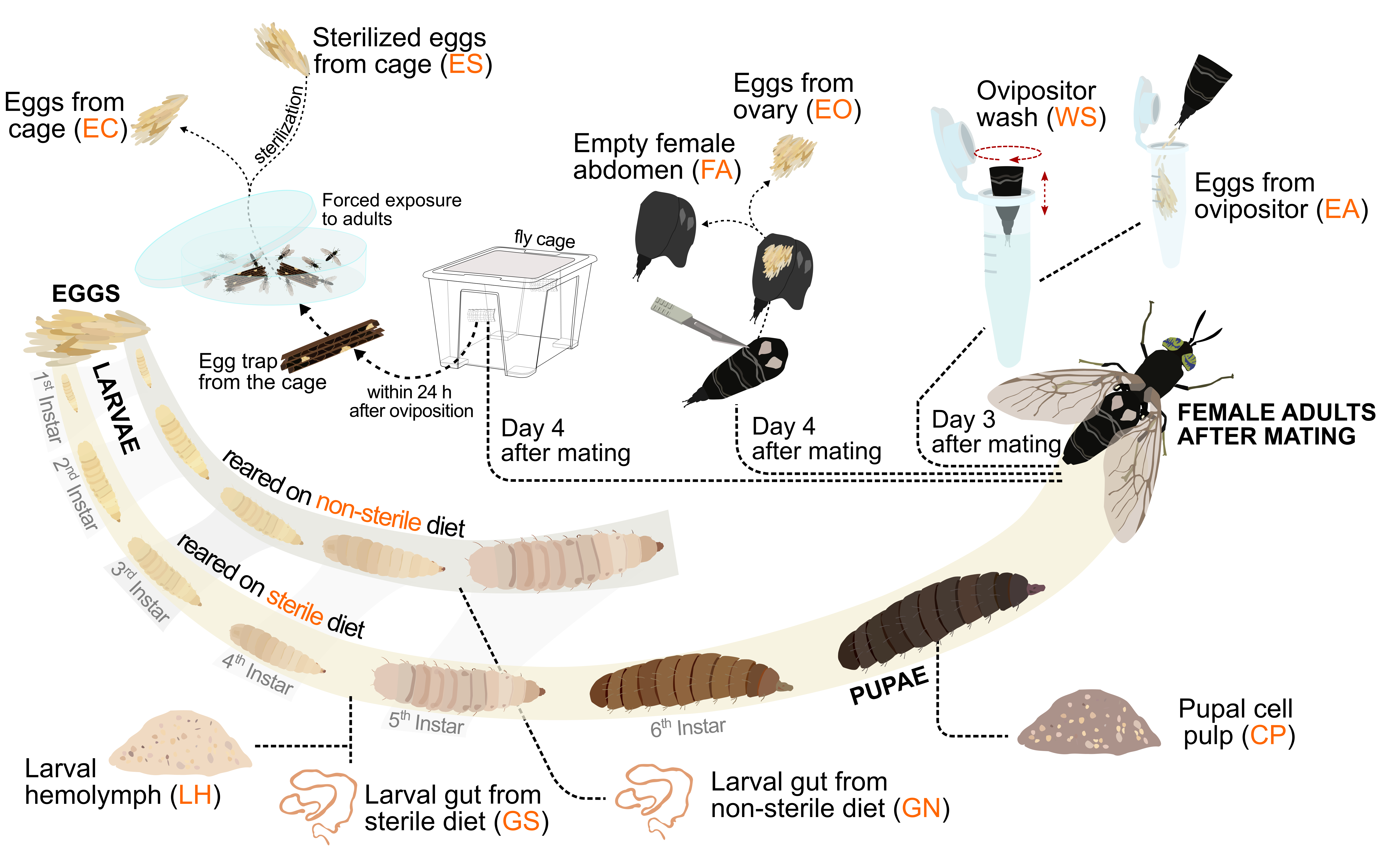

DNA was extracted from various black soldier fly tissues and developmental stages (Fig. 1) using the NucleoSpin Soil Kit (Macherey-Nagel, Düren, DE) following the manufacturer’s protocol:
- Eggs collected from the fly cage
- Eggs collected from the fly cage and subsequently sterilized
- Eggs extracted directly from the fly’s ovary
- Empty female abdomen after egg extraction
- Eggs directly collected from the ovipositor
- Ovipositor wash solution
- Pupal cell pulp
- Gut from larvae reared on non-sterilized diet
- Gut from larvae reared on sterilized diet
The extracted DNA was quantified and quality-checked via spectophotometry (NanoDropTM 1000c, Thermo Scientific, Waltham, MA, US) and agarose gel electrophoresis.
Enrichment PCR
The quality-checked DNA extracts were sent to Microsynth GmBH (Balgach, Switzerland) for enrichment and amplicon sequencing. After diluting the samples, the enrichment PCR with locus-specific primers for the V3-V4 (f-TCGTCGGCAGCGTCAGATGTGTATAAGAGACAGNNNNNCCTACGGGNGGCWGCAG / r-GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAGNNNNNGACTACHVGGGTATCTAATCC) and ITS2 region (f-TCGTCGGCAGCGTCAGATGTGTATAAGAGACAGNNNNNGCATCGATGAAGAACGCAGC / r-GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAGNNNNNTCCTCCGCTTATTGATATGC), followed by a 1-step PCR with locus-specific primers and Illumina overhang and a cleanbead purification was carried out. The final libraries were pooled and subjected to a final cleanbed purification of the pool (red = locus-specific sequences).
Amplicon sequencing
The amplicon sequencing was carried out on a Illumina MiSeq, following a 2 × 250 approach. The universal bacterial primers 341f/802r (5′-CCTACGGGRSGCAGCAG-3′ / 5′-TACNVGGGTATCTAATCC-3′) and the universal fungal primers ITS3f/ITS4r (5′-GCATCGATGAAGAACGCAGC-3′ / 5′-TCCTCCGCTTATTGATATGC-3′) were used to target the V3-V4 and ITS2 genetic regions, respectively. Library preparation was performed by the sequencing provider based on a Nextera two-step PCR including purification, quantification, and equimolar pooling.
Sequence processing and analysis
All sequence data were processed using DADA2 (Callahan et al., 2018). Data analysis and visualization was mainly done using the R packages ggplot2 (Wickham, 2016), vegan (Oksanen et al., 2022), phyloseq (McMurdie and Holmes, 2013), ampvis2 (Andersen et al., 2018).
Sequence processing
Prepare environment
Load packages
Set path and gather samples
path <- "...set path to your read files..."
list.files(path)
fnFs <- sort(list.files(path, pattern="_R1_001_trimmed.fastq", full.names = TRUE))
fnRs <- sort(list.files(path, pattern="_R2_001_trimmed.fastq", full.names = TRUE))
sample.names <- sapply(strsplit(basename(fnFs), "_"), `[`, 1)Quality profiles of raw reads
plotQualityProfile(fnFs[1:2])
plotQualityProfile(fnRs[1:2])
Filter raw reads
filtFs <- file.path(path, "filtered", paste0(sample.names, "_F_filt.fastq.gz"))
filtRs <- file.path(path, "filtered", paste0(sample.names, "_R_filt.fastq.gz"))
out <- filterAndTrim(fnFs, filtFs, fnRs, filtRs, truncLen=c(225,220),
maxN=0, maxEE=c(2,2), truncQ=2, rm.phix=TRUE,
compress=TRUE, multithread=FALSE)

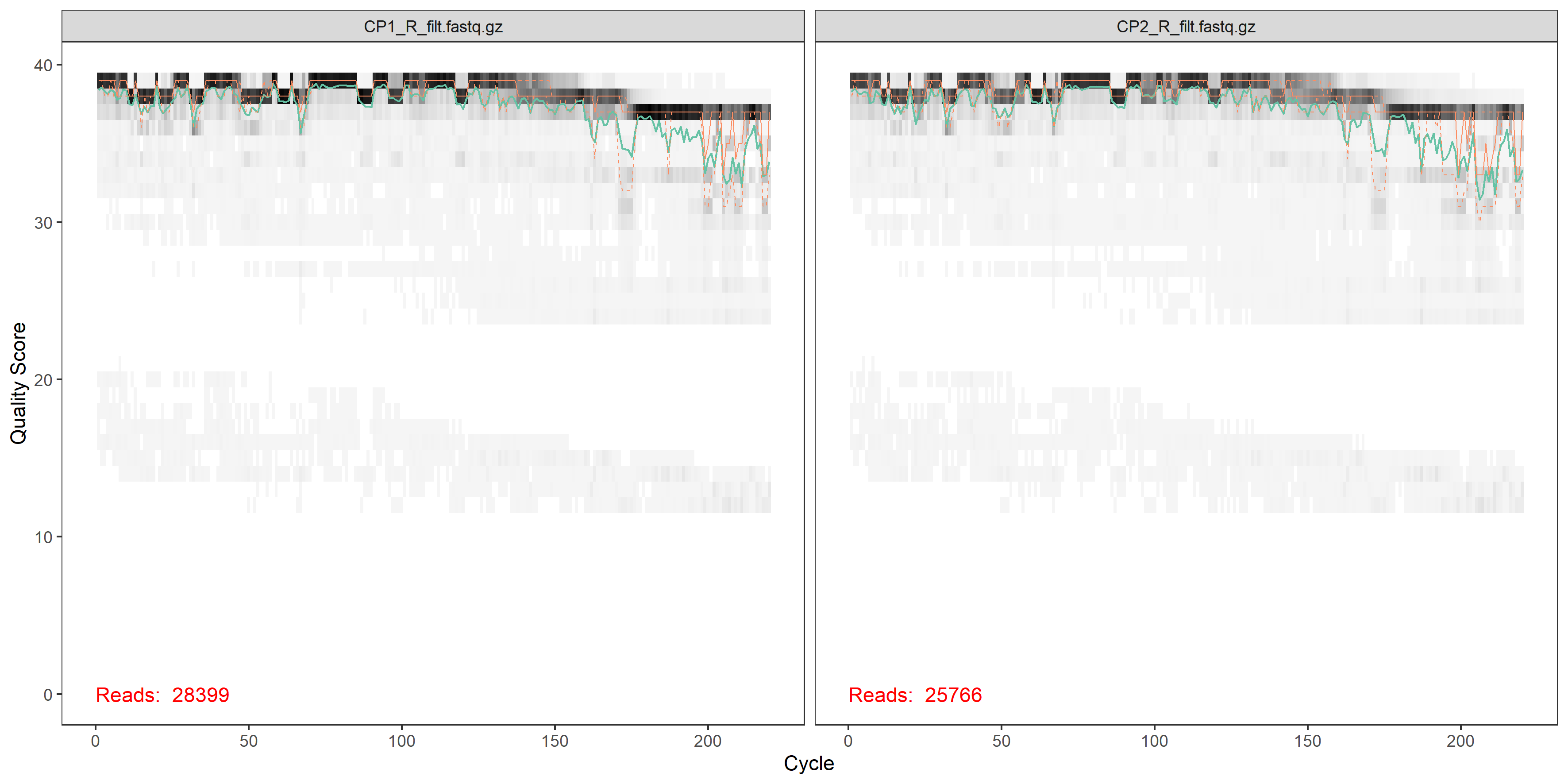

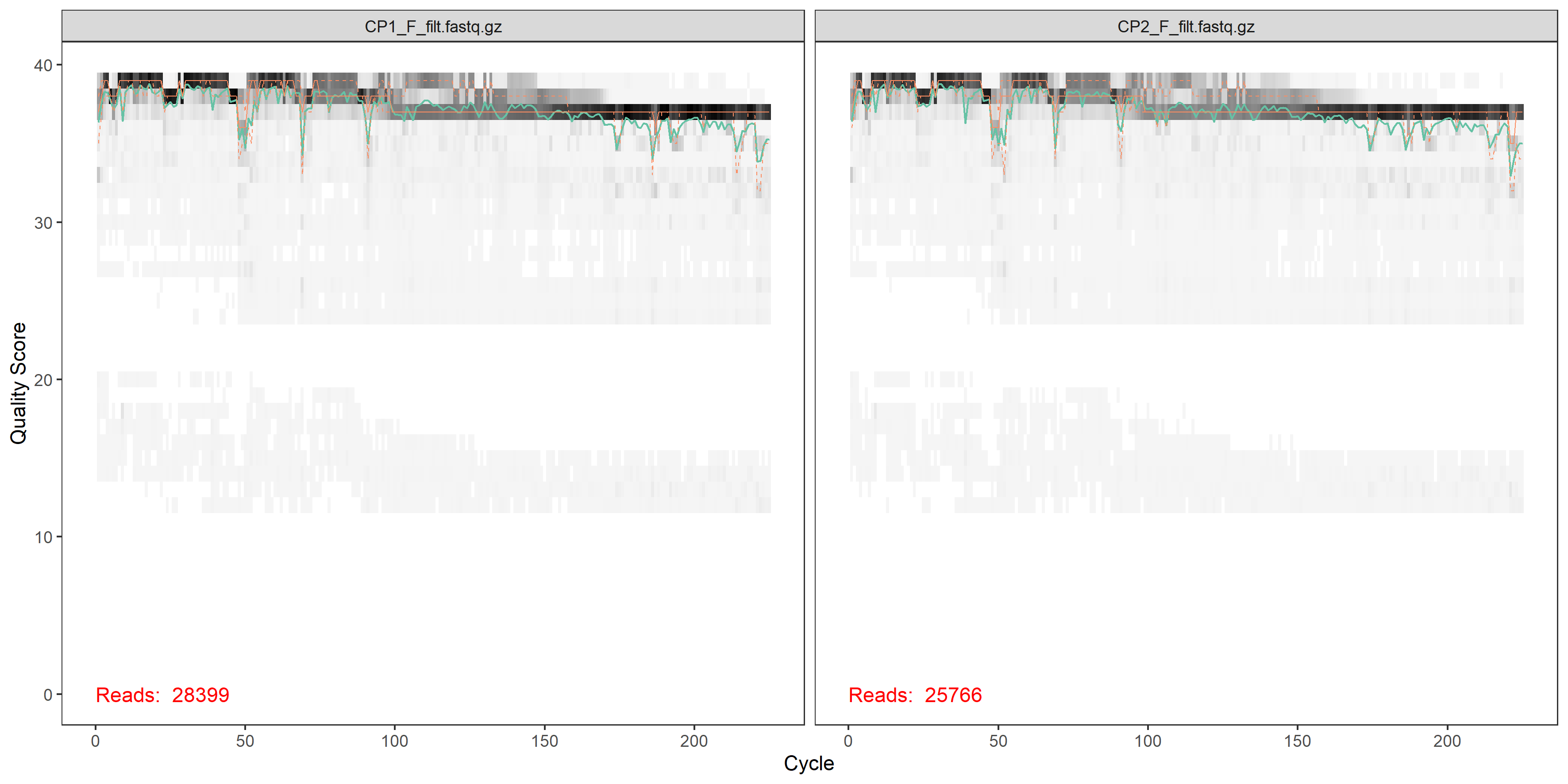

outQuality profiles of filtered reads
plotQualityProfile(filtFs[1:2])
plotQualityProfile(filtRs[1:2])

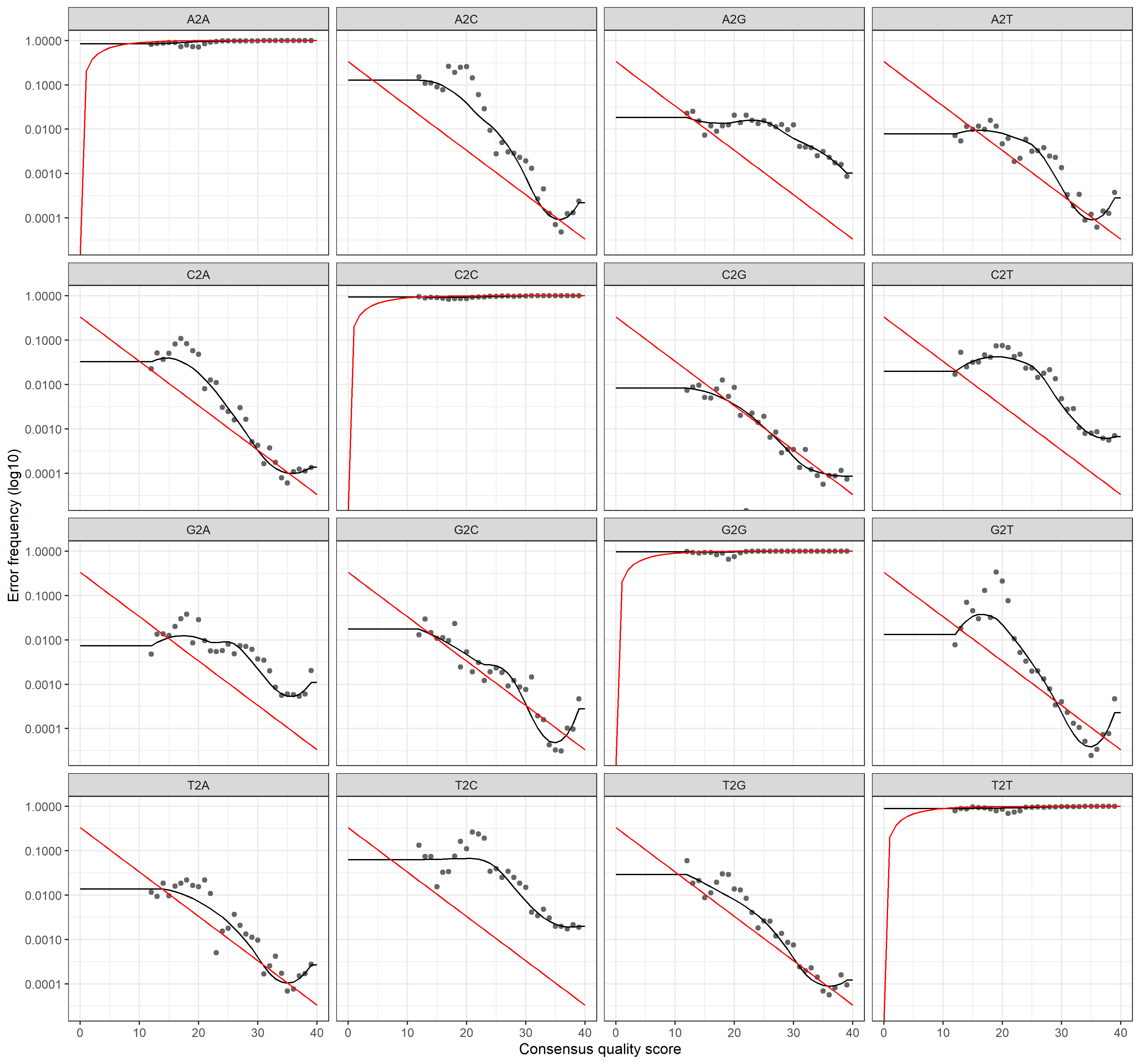

Assess and plot errors
errF <- learnErrors(filtFs, multithread=TRUE)
errR <- learnErrors(filtRs, multithread=TRUE)
plotErrors(errF, nominalQ=TRUE)
plotErrors(errR, nominalQ=TRUE)
Dereplicate
derepFs <- derepFastq(filtFs, verbose=TRUE)
derepRs <- derepFastq(filtRs, verbose=TRUE)
# Name the derep-class objects by the sample names
names(derepFs) <- sample.names
names(derepRs) <- sample.namesSample inference
dadaFs <- dada(derepFs, err=errF, multithread=TRUE)
dadaRs <- dada(derepRs, err=errR, multithread=TRUE)Merge paired reads
mergers <- mergePairs(dadaFs, derepFs, dadaRs, derepRs, verbose=TRUE)Generate sequence table
seqtab <- makeSequenceTable(mergers)
# Inspect distribution of sequence lengths
table(nchar(getSequences(seqtab)))Filter expected range
seqtab_subset <- seqtab[,nchar(colnames(seqtab)) %in% seq(426,428)]
# Inspect distribution of sequence lengths
table(nchar(getSequences(seqtab_subset)))Remove chimeras
seqtab_subset.nochim <- removeBimeraDenovo(
seqtab_subset,
method="consensus",
multithread=TRUE,
verbose=TRUE
)
dim(seqtab_subset.nochim)
sum(seqtab_subset.nochim)/sum(seqtab_subset)Track reads through the pipeline
getN <- function(x) sum(getUniques(x))
track <- cbind(
out,
sapply(dadaFs, getN),
sapply(dadaRs, getN),
sapply(mergers, getN),
rowSums(seqtab_subset.nochim)
)
colnames(track) <- c("input", "filtered", "denoisedF", "denoisedR", "merged", "nonchim")
rownames(track) <- sample.names
head(track)Assign taxonomy
taxa <- assignTaxonomy(seqtab_subset.nochim, "../silva_nr_v132_train_set.fa.gz", multithread=TRUE)
taxa.print <- taxa # Removing sequence rownames for display only
rownames(taxa.print) <- NULL
head(taxa.print)Export results
write.csv2(seqtab.nochim, "assets/data/16S-asvmat.csv", row.names = T)
write.csv2(taxa, "assets/data/16S-taxmat.csv", row.names = T)Data preparation
Ordering and colors
# Default order for ID and Stage variables
order_id <- c('GS', 'GU', 'LH', 'CP', 'FA', 'WS', 'EA', 'EO', 'EC', 'ES')
order_stage <- c('Larva', 'Pupa', 'Adult', 'Eggs')
# Default color palettes for ID, Stage, and Label variables
cols_stage <- c('Larva' = '#C6AC8F', 'Pupa' = '#5E503F', 'Adult' = '#0A0908', 'Eggs' = '#EAE0D5')
cols_label <- c('Larval haemolymph' = '#C7928F', 'Larval gut unsterile' = '#A35752',
'Larval gut sterile' = '#DDBDBB', 'Pupal cell pulp' = '#5E413F',
'Female abdomen' = '#4F4740', 'Wash solution' = '#70655C',
'Eggs cage' = '#F1E0D0', 'Eggs ovarium' = '#E3C1A1',
'Eggs oviposition apparatus' = '#D09762', 'Eggs sterile' = '#C78243')
cols_id <- c('LH' = '#C7928F', 'GU' = '#A35752', 'GS' = '#DDBDBB', 'CP' = '#5E413F',
'FA' = '#4F4740', 'WS' = '#70655C', 'EC' = '#F1E0D0', 'EO' = '#E3C1A1',
'EA' = '#D09762', 'ES' = '#C78243')Load the data
asvmat <- read.csv("assets/data/16S-asvmat.csv", sep = ";", row.names = 1)
taxmat <- read.csv("assets/data16S-taxmat.csv", sep = ";", row.names = 1)
metmat <- read.csv("assets/datametadata.csv", sep = ";")
# Compare and check sequences, assign ASV labels to replace sequences in tables
seq_check <- data.frame(ASV_SEQS = colnames(otumat),
TAX_SEQS = rownames(taxmat),
ASV = paste0('OTU', seq(1:nrow(taxmat)))) %>%
mutate(TEST = ifelse(.$ASV_SEQS == .$TAX_SEQS, 1, 0))
# Sanity check to see if sequences in ASV and taxonomy table match
any(seq_check$TEST == 0) # If any values are 0, seqs do not matchPrepare tables
asvmat <- data.frame(t(asvmat)) %>%
rownames_to_column('ASV_SEQS') %>%
left_join(seq_check %>% select(ASV_SEQS, ASV)) %>%
column_to_rownames('ASV') %>%
select(-ASV_SEQS)
taxmat <- taxmat %>%
rownames_to_column('TAX_SEQS') %>%
left_join(seq_check %>% select(TAX_SEQS, ASV)) %>%
column_to_rownames('ASV') %>%
select(-TAX_SEQS)Create phyloseq object
ps <- phyloseq(
otu_table(as.matrix(asvmat), taxa_are_rows = T),
tax_table(as.matrix(taxmat)),
sample_data(metmat %>% column_to_rownames('SampleID')))Explore the phyloseq object
sample_variables(ps) # check available metadata variables
sample_names(ps) # check sample names
sample_data(ps) # check metadata table
# Make sure the variables are plotted in the right order
sample_data(ps)$ID <- factor(sample_data(ps)$ID, levels = order_id)
sample_data(ps)$Stage <- factor(sample_data(ps)$Stage, levels = order_stage)Rarefaction

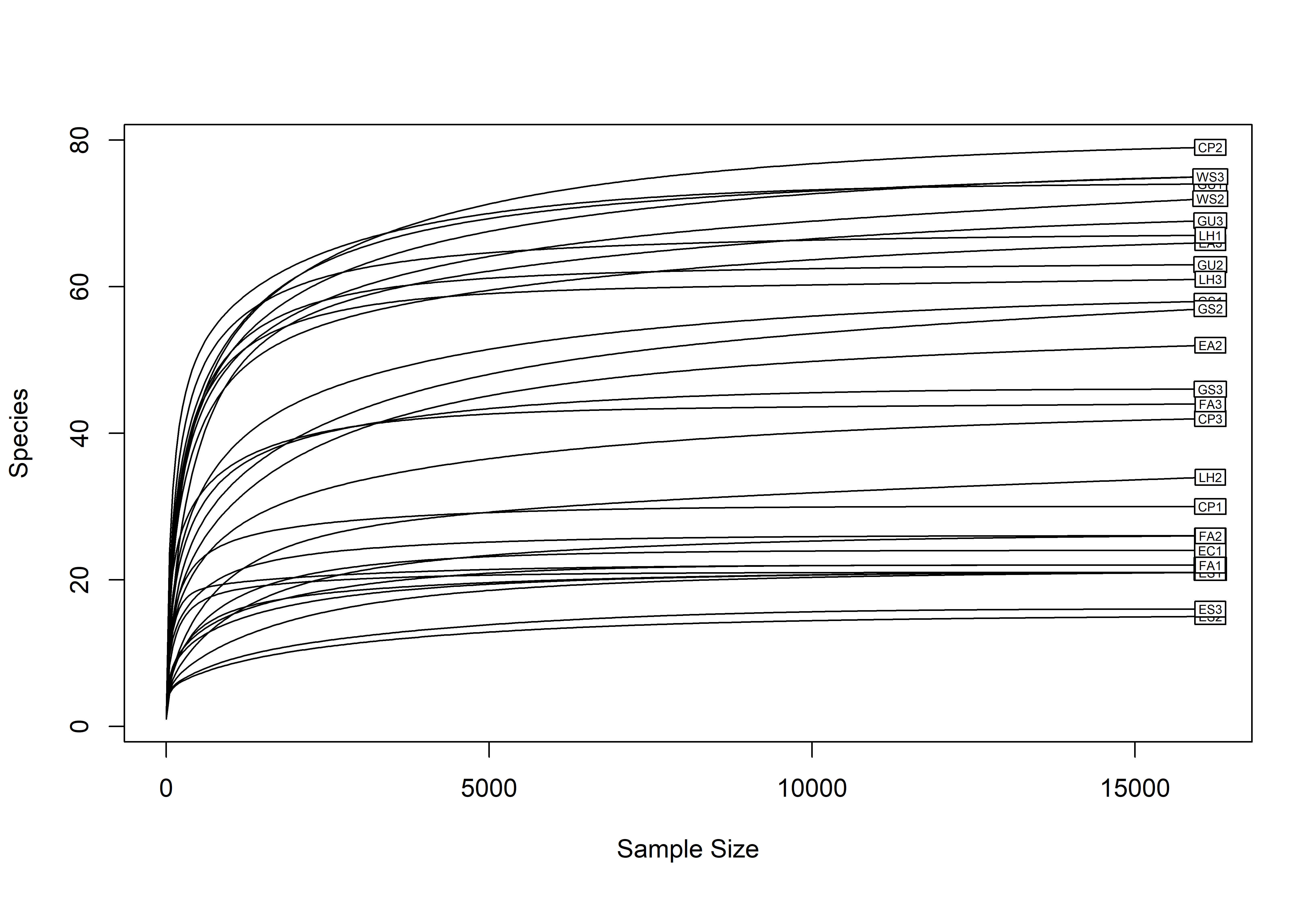

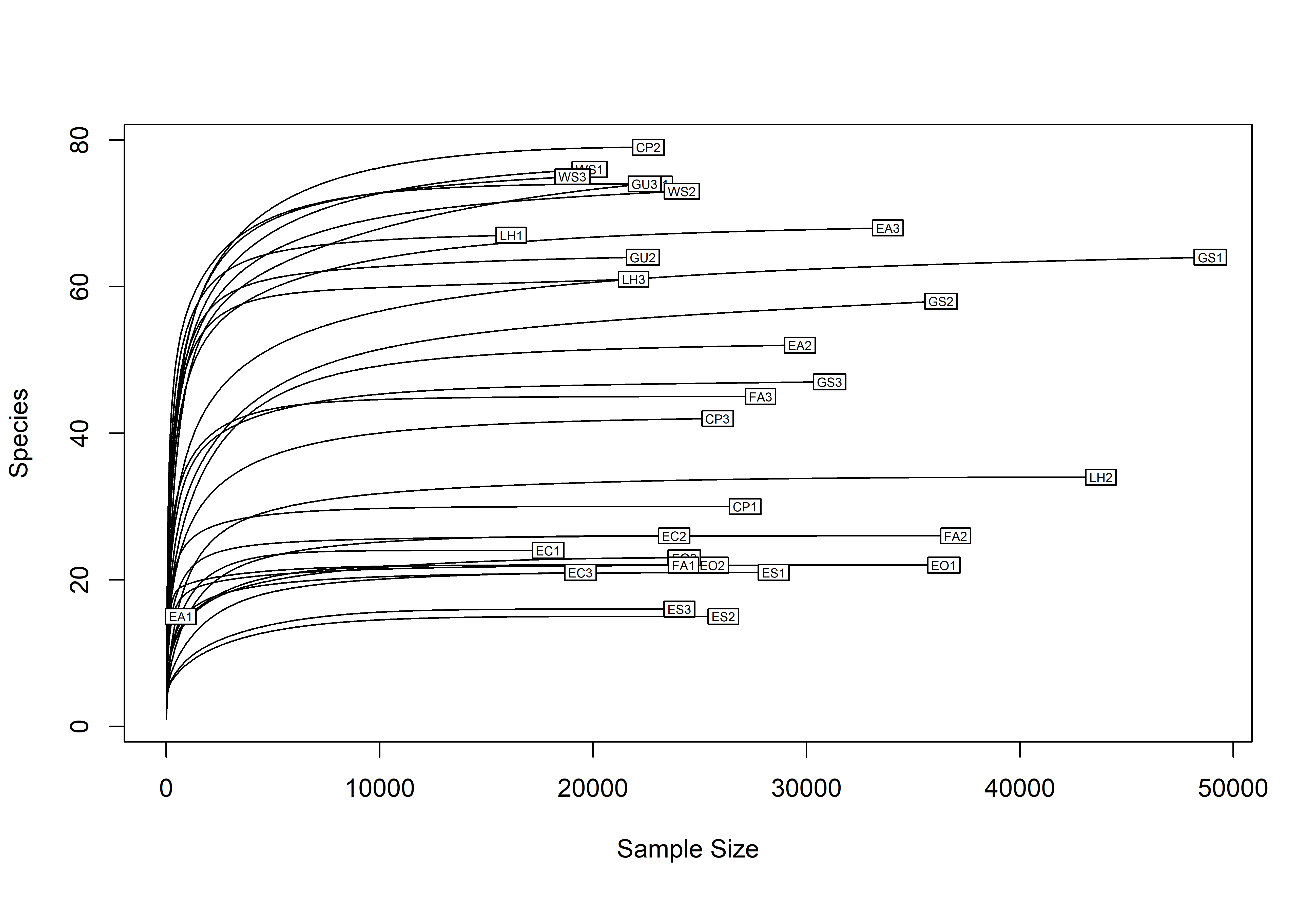

rarecurve(t(otu_table(ps)), step=50, cex=0.5)
Remove outlier and rarefy
# Check smallest sample size
min(sample_sums(ps))
# Remove smallest sample
ps.sub <- subset_samples(ps, sample_names(ps) != 'EA1')
# Check again for smallest sample size and remaining number of samples
min(sample_sums(ps.sub))
nsamples(ps.sub)
# Rarefy abundance data to even depth and plot rarefaction curves
ps.rarefied <- rarefy_even_depth(ps.sub,
rngseed = 1000,
sample.size = min(sample_sums(ps.sub)),
replace = F)
rarecurve(t(otu_table(ps.rarefied)), step=50, cex=0.5)

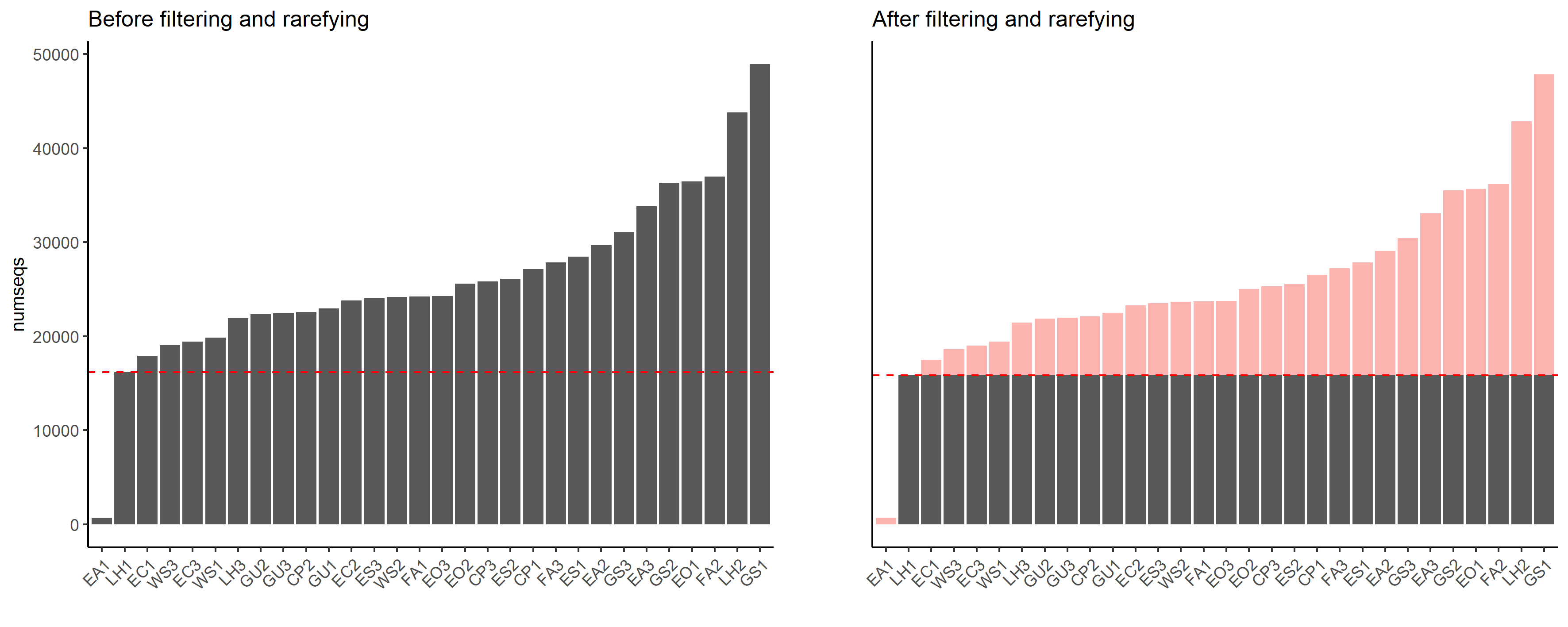

Before and after filtering and rarefying
Sample EA1 was removed from the dataset due to significantly lower read numbers. The remaining dataset was rarefied to the smallest sample size, thus, obtaining a dataset with equal sequencing depth.
Convert phyloseq object to ampvis2 object
Transformation
amp.rarefied <- phyloseq_to_ampvis2(ps.rarefied)phyloseq_to_ampvis2.R
Credits to Kasper Skytte Anderson github.com/KasperSkytte for writing this function
Statistics & Visualization
General overview
Family level community composition
p1 <- ggplot(bac) +
geom_bar(aes(x = ID, y = Rel_Abundance/3, fill = Family), stat = 'identity', position = 'stack') +
scale_fill_manual(values = colorRampPalette(brewer.pal(12, 'Set3'))(length(unique(bac$Family))))+
labs(x = '', y = 'Relative abundance [%]') +
facet_grid(.~Stage, scales = 'free_x', space = 'free') +
guides(fill = guide_legend(ncol = 1, title = element_blank())) +
theme_classic()
p2 <- bac_sub %>% filter(Family == 'Enterobacteriaceae') %>%
ggplot() +
geom_bar(aes(x = ID, y = Rel_Abundance/3, fill = Genus), stat = 'identity', position = 'stack') +
scale_fill_manual(values = cut_colors[enterobacteriaceae], name = "Enterobacteriaceae") +
labs(x = '', y = 'Relative abundance [%]') +
facet_grid(.~Stage, scales = 'free_x', space = 'free_x') +
theme_classic() +
theme(legend.position = 'left')
p3 <- bac_sub %>% filter(Family == 'Burkholderiaceae') %>%
ggplot() +
geom_bar(aes(x = ID, y = Rel_Abundance/3, fill = Genus), stat = 'identity', position = 'stack') +
scale_fill_manual(values = cut_colors[burkholderiaceae], name = "Burkholderiaceae") +
lims(y = c(0, 100)) +
facet_grid(.~Stage, scales = 'free_x', space = 'free_x') +
theme_classic() +
theme(legend.position = 'right')
ggarrange(
p1 +
theme(legend.position = 'bottom',
legend.title = element_text(angle = 90),
legend.margin = margin(-10, 0, 20, 0)) +
guides(fill = guide_legend(nrow = 4, title.hjust = 0.5)),
ggarrange(p2 +
scale_y_continuous(breaks = c(0, 25, 75, 100), position = 'right', limits = c(0, 100)) +
theme(axis.text.y.right = element_text(hjust = 0.5, vjust = 6, angle = 270),
axis.title.y.right = element_text(size = 9)) +
guides(fill = guide_legend(label.position = 'left', label.hjust = 1)),
p3 +
theme(axis.text.y = element_blank(),
axis.title.y = element_blank()),
labels = c('B', 'C'), label.y = 1.05, font.label = list(color = 'grey45', face = 'bold')),
nrow = 2, heights = c(1.1, 0.8), labels = c('A'),font.label = list(color = 'grey45', face = 'bold'))Prepare data
# Rarefy all samples
ps.rarefied.full <- rarefy_even_depth(ps,
sample.size = min(sample_sums(ps)),
rngseed = 1000,
replace = F)
# Construct table containing abundance, taxonomy, and meta information
bac <- data.frame(t(otu_table(ps.rarefied.full))) %>%
rownames_to_column('SampleID') %>%
reshape2::melt(variable.name = 'ASV', value.name = 'Abundance') %>%
left_join(data.frame(tax_table(ps.rarefied.full)) %>%
rownames_to_column('ASV')) %>%
filter(!is.na(Family)) %>%
group_by(SampleID) %>%
mutate(Rel_Abundance = Abundance/sum(Abundance)*100) %>%
left_join(data.frame(sample_data(ps.rarefied.full)) %>%
rownames_to_column('SampleID') %>%
select(SampleID, ID, Stage, Label)) %>%
mutate(ID = factor(ID, levels = order_id),
Stage = factor(Stage, levels = c('Larva', 'Pupa', 'Adult', 'Eggs')))
# Subset families of Burkholderiaceae and Enterobacteriaceae
bac_sub <- bac %>%
filter(Family %in% c('Burkholderiaceae', 'Enterobacteriaceae')) %>%
mutate(Genus = gsub("-", "-\n ", Genus))
cut_colors <- setNames(colorRampPalette(brewer.pal(12, 'Set3'))(length(unique(bac_sub$Genus))), levels(factor(bac_sub$Genus)))
burkholderiaceae <- bac_sub %>% filter(Family == 'Burkholderiaceae') %>% .$Genus %>% unique()
enterobacteriaceae <- bac_sub %>% filter(Family == 'Enterobacteriaceae') %>% .$Genus %>% unique()
click figure to see larger version
Alpha diversity
Create comprehensive alpha diversity table
alpha <- alpha(ps.rarefied, index = 'all')Prepare data for plotting
# Extract metadata
ps.rarefied.meta <- meta(ps.rarefied)
# Add selected alpha diversity measures to metadata table
ps.rarefied.meta$Shannon <- alpha$diversity_shannon
ps.rarefied.meta$Evenness <- alpha$evenness_pielou
# Set order and grouping for statistics
levels_stage <- levels(as.factor(ps.rarefied.meta$Stage))
pairs_stage <- combn(seq_along(levels_stage), 2, simplify = F, FUN = function(i)levels_stage[i])Plot alpha diversity measures and add statics

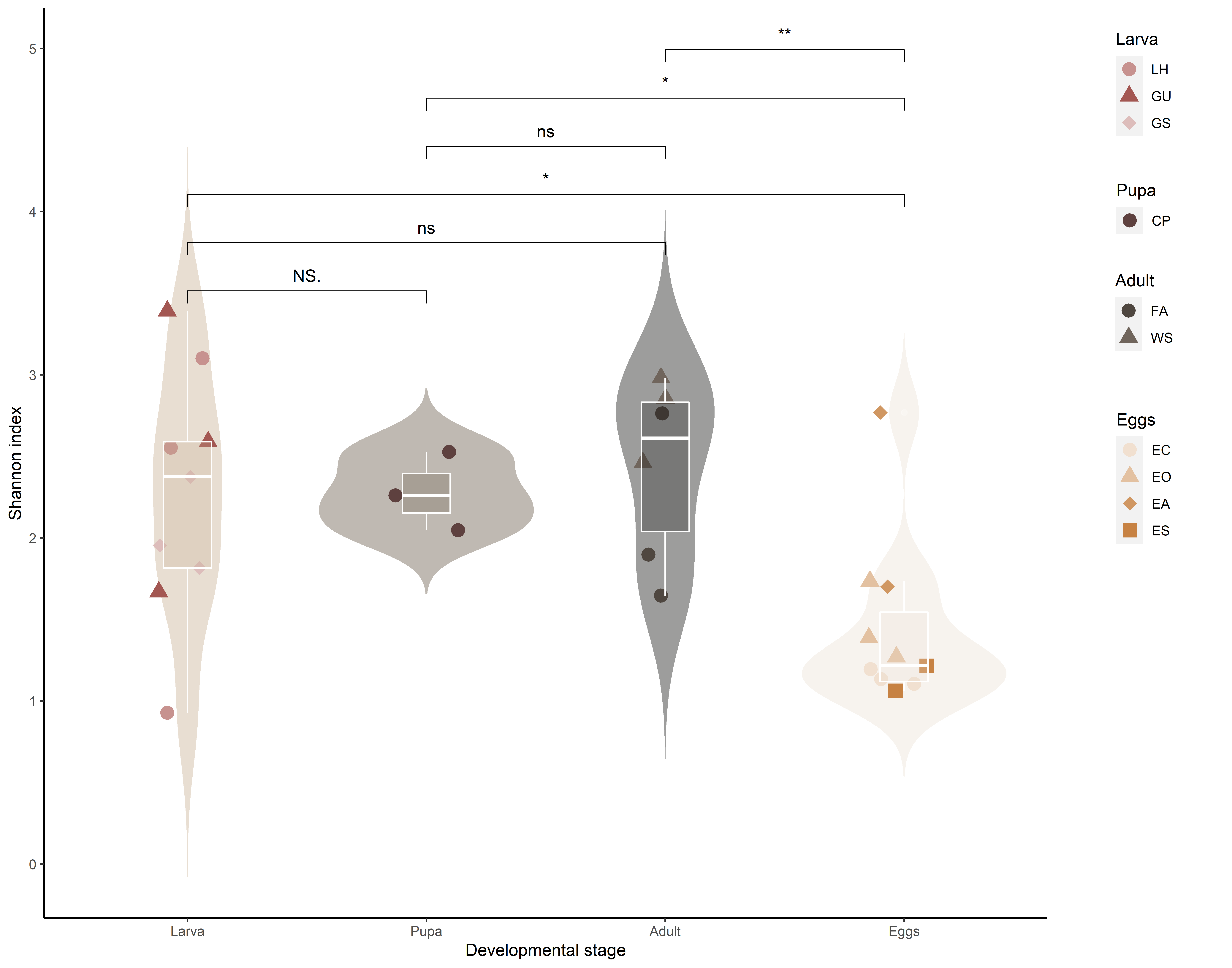

Shannon
# Set shapes for each group of samples
shapes_id <- c('LH' = 16, 'GN' = 17, 'GS' = 18, 'CP' = 16, 'FA' = 16, 'WS' = 17, 'EC' = 16, 'EO' = 17, 'EA' = 18, 'ES' = 15)
# Plot alpha diversity values
shannon_p <- ggplot(ps.rarefied.meta, aes(x = Stage, y = Shannon)) +
geom_violin(aes(fill = Stage),
colour = NA, trim = F, alpha = 0.4) +
geom_point(aes(colour = ID, shape = ID),
size = 4, position = position_jitter(width = 0.15, seed = 12)) +
geom_boxplot(aes(fill = Stage),
colour = 'white', width = 0.2, alpha = 0.25) +
scale_fill_manual(values = cols_stage) +
scale_color_manual(values = cols_id) +
scale_shape_manual(values = shapes_id) +
labs(x = 'Developmental stage',
y = 'Shannon index',
colour = '',
shape = '') +
guides(fill = 'none') +
theme_classic()
# Add statistics
shannon_p <- shannon_p + stat_compare_means(aes(label = ..p.signif..), comparisons = pairs_stage, ref.group = '0.5', method = 'wilcox.test')
# Assign sample groups to developmental stages to subset legend
larva <- c('LH', 'GN', 'GS')
pupa <- c('CP')
adult <- c('FA', 'WS')
eggs <- c('EC', 'EO', 'EA', 'ES')
# Create separate legends for each developmental stage
legend_larva <- get_legend(
ggplot(ps.rarefied.meta %>% filter(Stage == 'Larva'),
aes(x = Stage, y = Shannon)) +
geom_point(aes(colour = ID, shape = ID),
size = 4, position = position_jitter(width = 0.15, seed = 12)) +
labs(fill = 'Larva', colour = 'Larva', shape = 'Larva') +
scale_fill_manual(values = cols_stage[larva]) +
scale_color_manual(values = cols_id[larva]) +
scale_shape_manual(values = shapes_id[larva]))
legend_pupa <- get_legend(
ggplot(ps.rarefied.meta %>% filter(Stage == 'pupa'),
aes(x = Stage, y = Shannon)) +
geom_point(aes(colour = ID, shape = ID),
size = 4, position = position_jitter(width = 0.15, seed = 12)) +
labs(fill = 'Pupa', colour = 'Pupa', shape = 'Pupa') +
scale_fill_manual(values = cols_stage[pupa]) +
scale_color_manual(values = cols_id[pupa]) +
scale_shape_manual(values = shapes_id[pupa]))
legend_adult <- get_legend(
ggplot(ps.rarefied.meta %>% filter(Stage == 'adult'),
aes(x = Stage, y = Shannon)) +
geom_point(aes(colour = ID, shape = ID),
size = 4, position = position_jitter(width = 0.15, seed = 12)) +
labs(fill = 'Adult', colour = 'Adult', shape = 'Adult') +
scale_fill_manual(values = cols_stage[adult]) +
scale_color_manual(values = cols_id[adult]) +
scale_shape_manual(values = shapes_id[adult]))
legend_eggs <- get_legend(
ggplot(ps.rarefied.meta %>% filter(Stage == 'eggs'),
aes(x = Stage, y = Shannon)) +
geom_point(aes(colour = ID, shape = ID),
size = 4, position = position_jitter(width = 0.15, seed = 12)) +
labs(fill = 'Eggs', colour = 'Eggs', shape = 'Eggs') +
scale_fill_manual(values = cols_stage[eggs]) +
scale_color_manual(values = cols_id[eggs]) +
scale_shape_manual(values = shapes_id[eggs]))
# Arrange legends
legends <- ggarrange(legend_larva, legend_pupa, legend_adult, legend_eggs, nrow = 4, heights = c(0.4, 0.2, 0.3, 0.5))
# Combine the alpha diversity plot with its legends
shannon_p <- ggarrange(shannon_p + theme(legend.position = 'none'), ggarrange(legends,nrow = 2, heights = c(0.6, 0.4)), ncol = 2, widths = c(1.8, 0.3))
shannon_p
click figure to see larger version
Pielou’s evenness
pielou_p <- ggplot(ps.rarefied.meta, aes(x = Stage, y = Evenness)) +
geom_violin(aes(fill = Stage), colour = NA, trim = F, alpha = 0.4) +
geom_point(aes(colour = ID, shape = Tissue), size = 4, position = position_jitter(width = 0.15, seed = 12)) +
geom_boxplot(aes(fill = Stage), colour = 'white', width = 0.2, alpha = 0.25) +
scale_fill_manual(values = cols_stage) +
scale_color_manual(values = cols_id) +
labs(x = 'Developmental stage',
y = 'Shannon index',
colour = '',
shape = '') +
guides(fill = 'none') +
theme_classic()
pielou_p <- pielou_p + stat_compare_means(aes(label = ..p.signif..), comparisons = pairs_stage, ref.group = '0.5', method = 'wilcox.test')
pielou_p
click figure to see larger version
Rank abundance
amp_rankabundance(amp.rarefied, group_by = 'Stage', showSD = TRUE, log10_x = TRUE) +
scale_colour_manual(values = cols_stage) +
scale_fill_manual(values = cols_stage)
click figure to see larger version
Venn diagrams

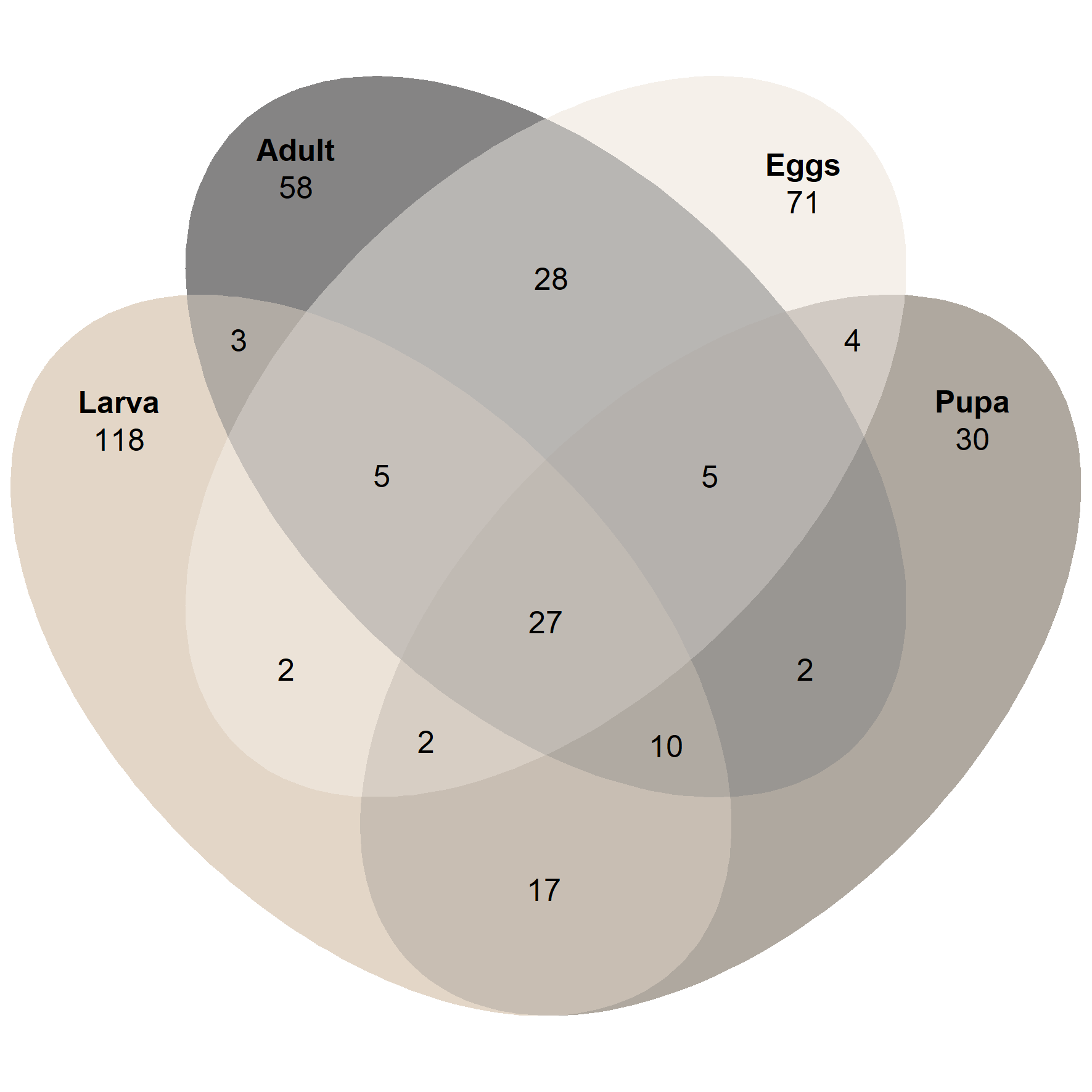

Life cycle
# Group samples based on developmental stage
venn_p1 <- ps_venn(ps.rarefied,
group = 'Stage',
fill = cols_stage,
colour = 'white',
edges = F,
alpha = 0.5)
venn_p1

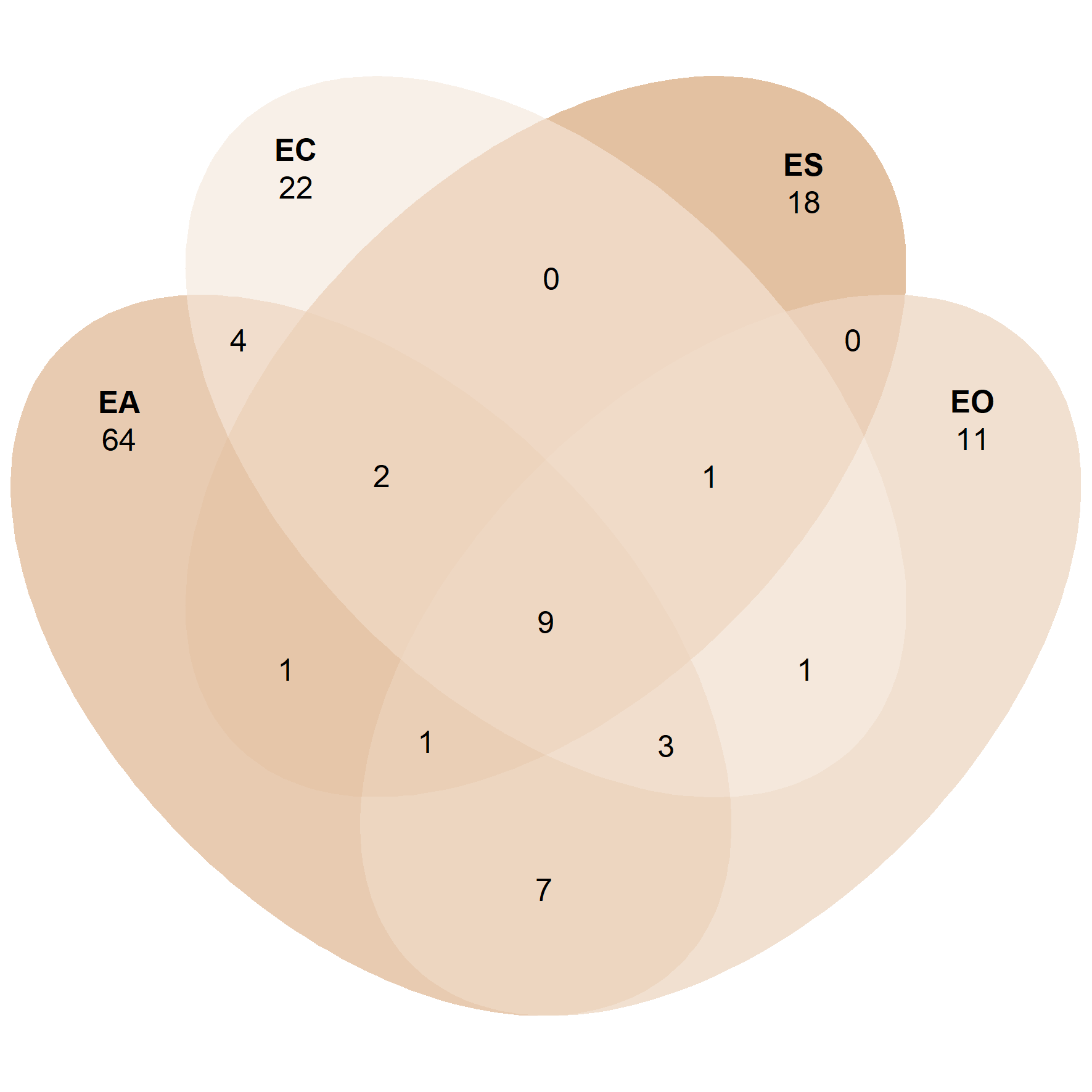

Eggs
ps_egg <- subset_samples(ps.rarefied, Stage == 'Eggs')
venn_p2 <- ps_venn(ps_egg,
group = 'ID',
fill = c('EA' = '#D09762', 'EO' = '#E3C1A1', 'EC' = '#F1E0D0', 'ES' = '#C78243'),
colour = 'white',
edges = F,
alpha = 0.5)
venn_p2

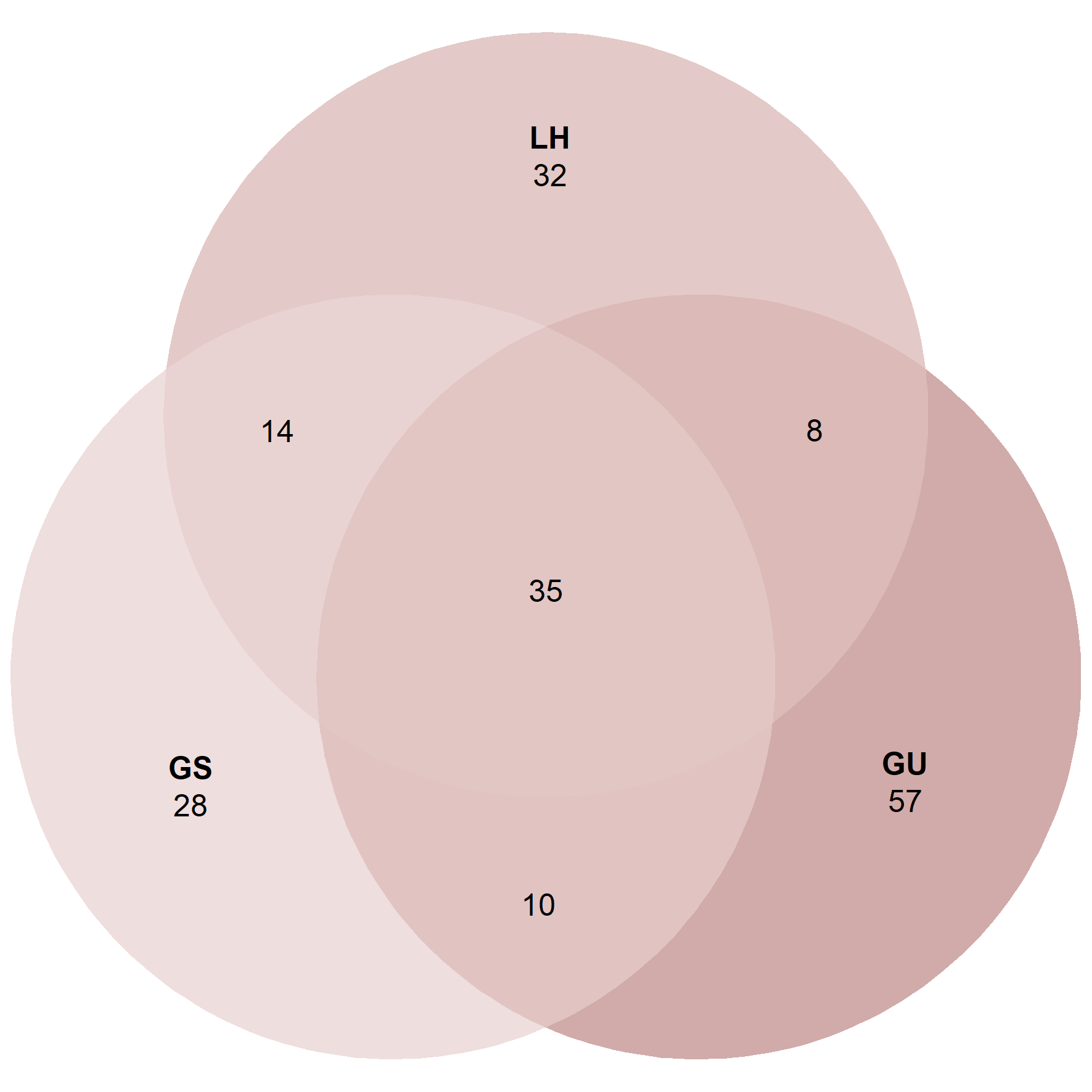

Larvae
ps_lar <- subset_samples(ps.rarefied, Stage == 'Larva')
venn_p3 <- ps_venn(ps_lar,
group = 'ID',
fill = c('GS' = '#DDBDBB', 'GU' = '#A35752', 'LH' = '#C7928F'),
colour = 'white',
edges = F,
alpha = 0.5)
venn_p3

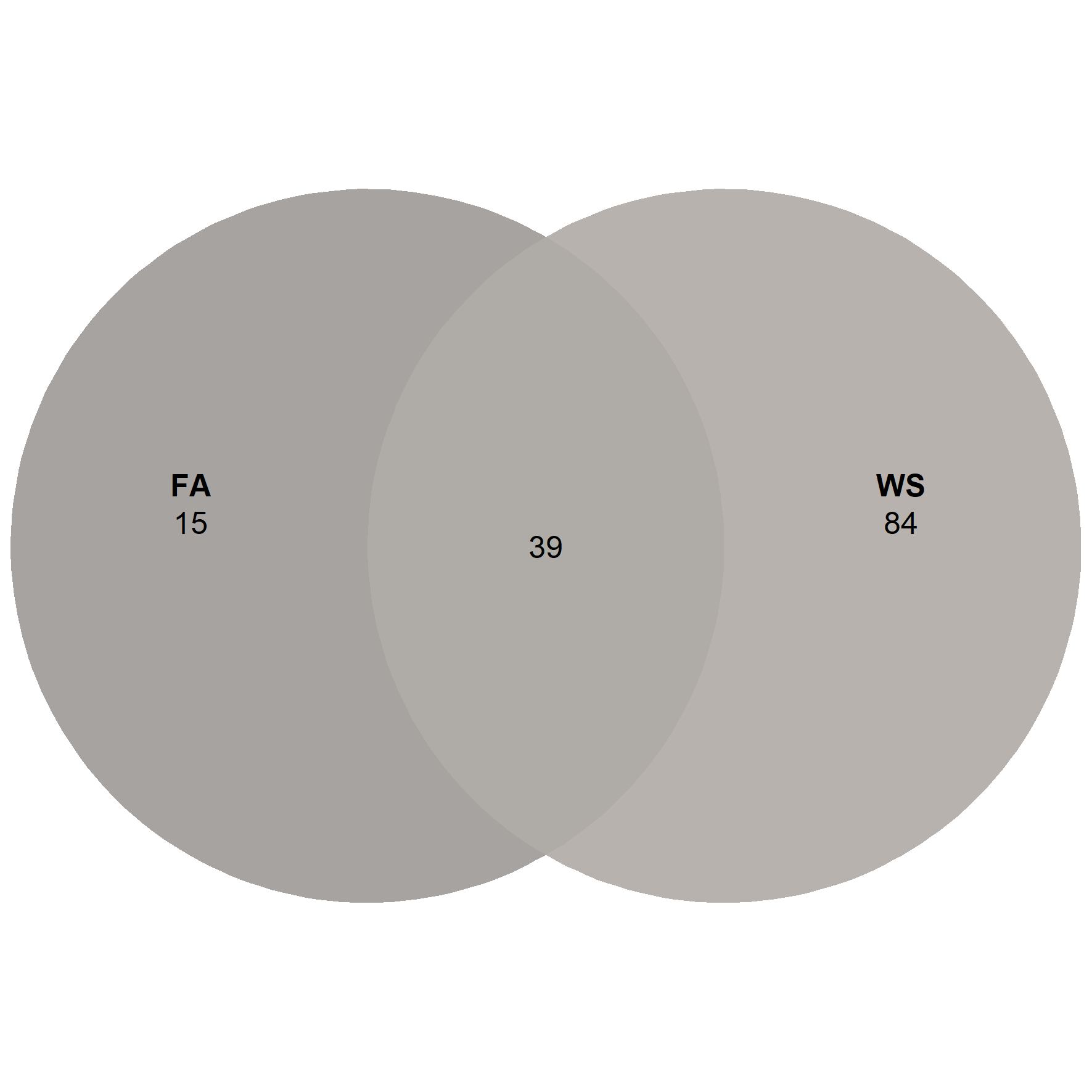

Adults
ps_adu <- subset_samples(ps.rarefied, Stage == 'Adult')
venn_p4 <- ps_venn(ps_adu,
group = 'ID',
fill = c('FA' = '#4F4740', 'WS' = '#70655C'),
colour = 'white',
edges = F,
alpha = 0.5)
venn_p4
Eggs+Adults
ps_adu_egg <- subset_samples(ps.rarefied, ID %in% c('FA', 'WS', 'EA', 'EO'))
venn_p5 <- ps_venn(ps_adu_egg,
group = 'ID',
fill = c('FA' = '#4F4740', 'WS' = '#70655C', 'EA' = '#D09762', 'EO' = '#E3C1A1'),
colour = 'white',
edges = F,
alpha = 0.5)
venn_p5

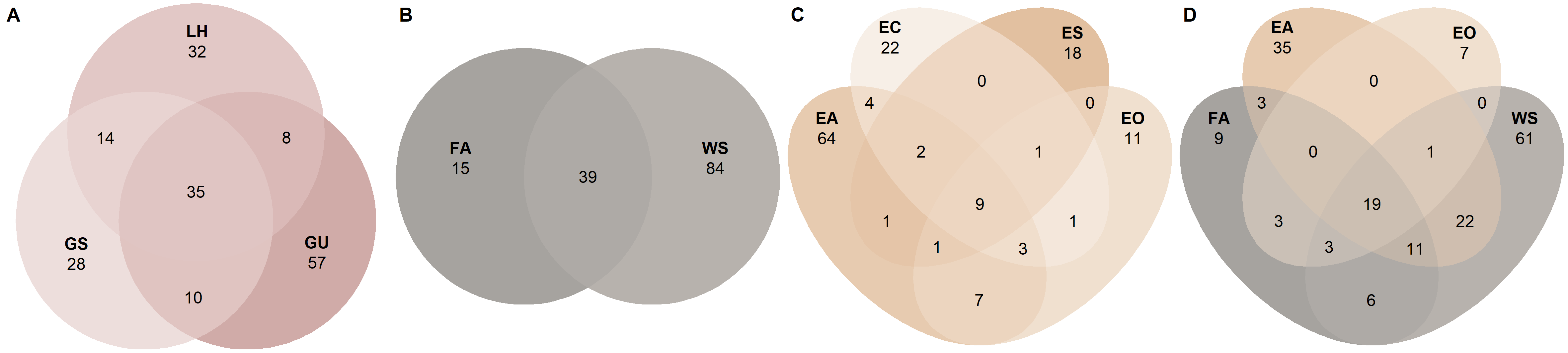

Plots arranged
click figure to see larger version
Heatmap
Plot heatmap
amp_heatmap(
amp.rarefied,
group_by = 'SampleID',
facet_by = 'Stage',
tax_aggregate = 'Genus',
tax_add = 'Phylum',
tax_show = 25,
normalise = T,
showRemainingTaxa = T,
plot_values_size = 3,
color_vector = c('white', '#A2708A'),
plot_colorscale = 'sqrt',
plot_values = F) +
theme(axis.text.x = element_text(angle = 45, size = 8, vjust = 1),
axis.text.y = element_text(size = 8),
legend.position='right')
click figure to see larger version

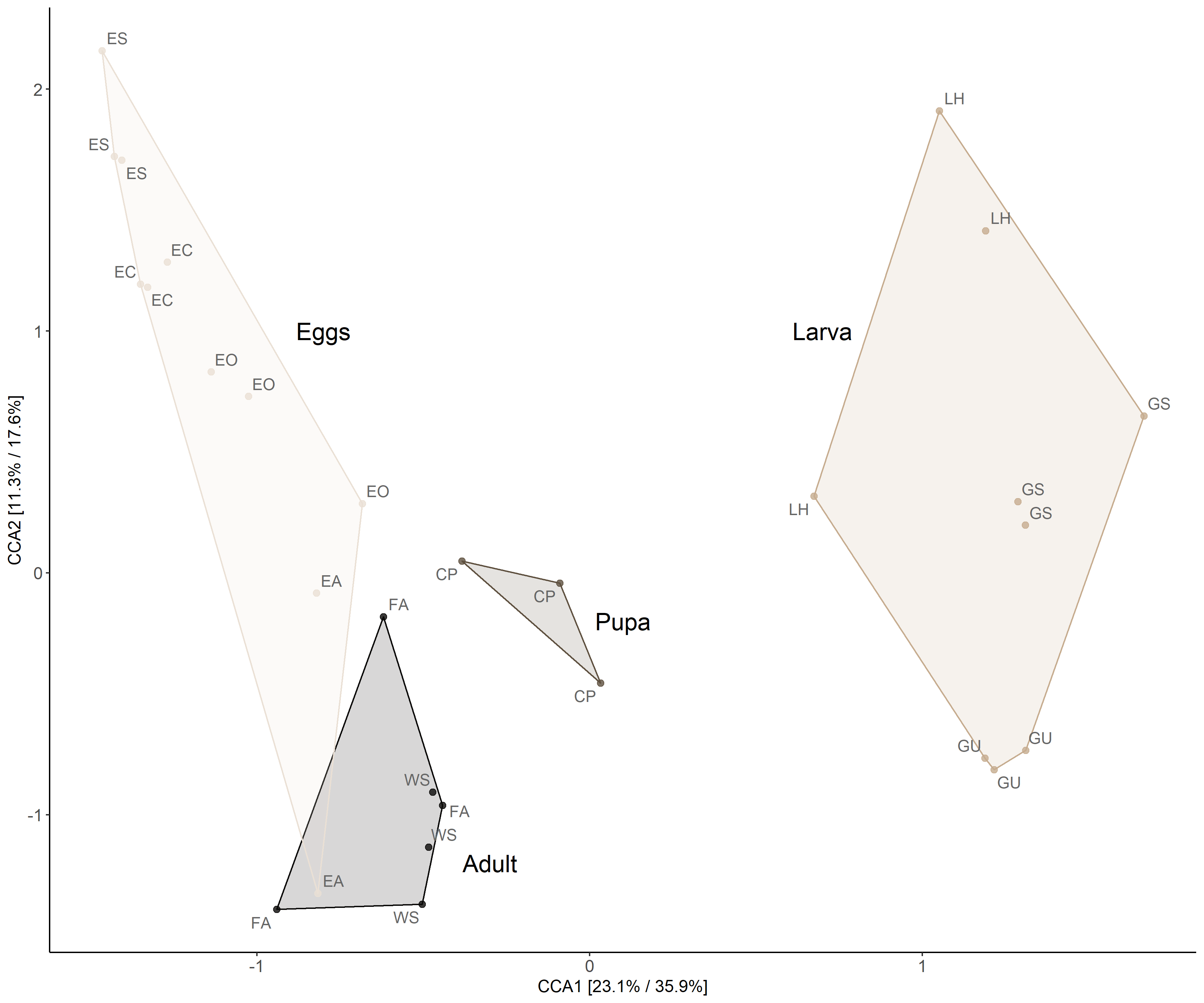

Ordination
Canonical Correspondence Analysis
ordinationresult <- amp_ordinate(
amp.rarefied,
type = 'CCA',
constrain = 'ID',
transform = 'Hellinger',
sample_color_by = 'Stage',
sample_colorframe = TRUE,
sample_colorframe_label_size = 4,
sample_colorframe_label = 'Stage',
sample_label_by = 'ID',
sample_label_size = 3.5,
repel_labels = T,
detailed_output = T)CCA
ordinationresult$plot +
scale_fill_manual(values = cols_stage) +
scale_colour_manual(values = cols_stage) +
labs(fill = '', colour = '') +
theme_classic() +
theme(legend.position = 'none')
click figure to see larger version

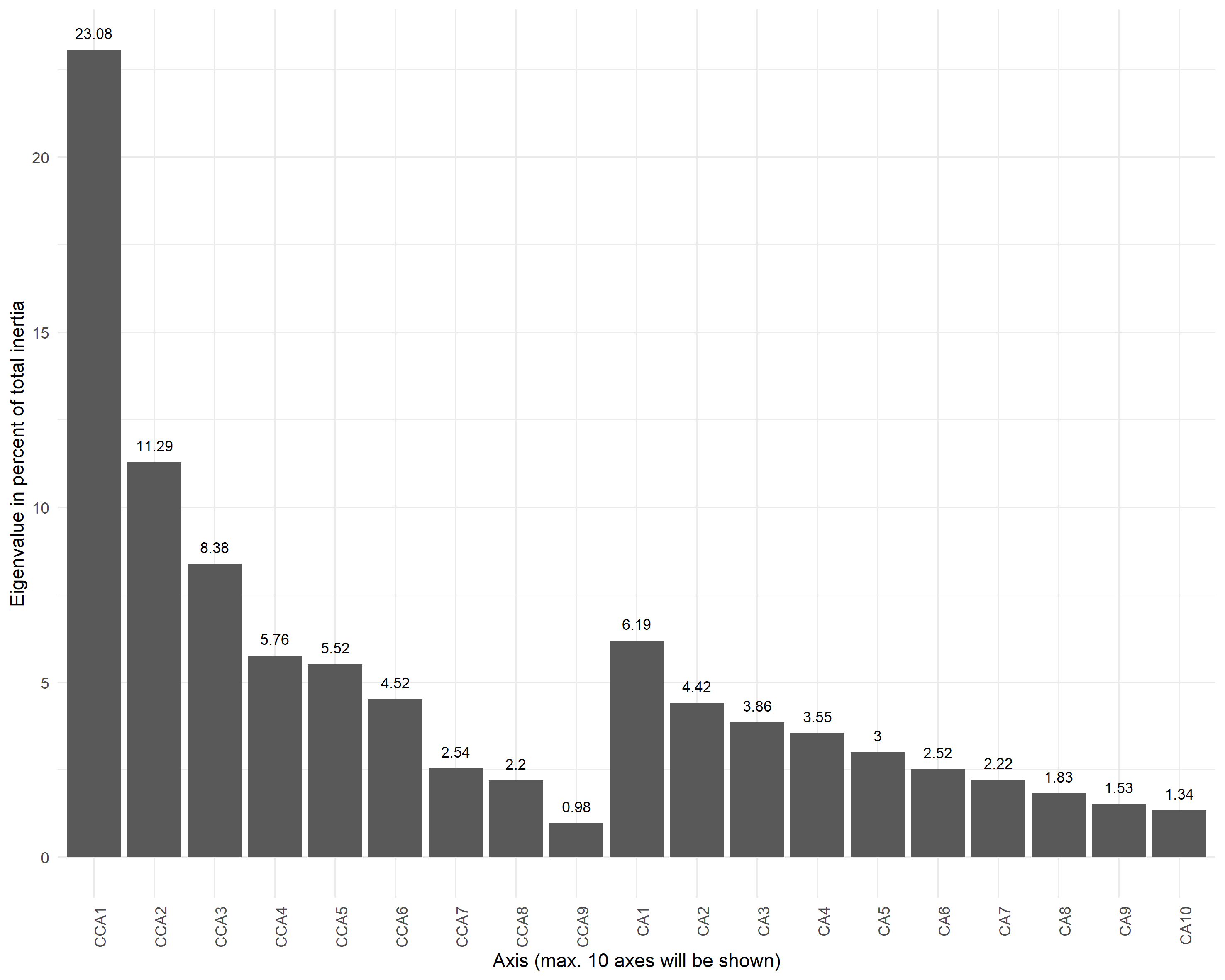

Screeplot
ordinationresult$screeplot
click figure to see larger version
Permanova
# Prepare data
abund_tab <- data.frame(t(otu_table(ps.rarefied)))
group_tab <- data.frame(sample_data(ps.rarefied)) %>% rownames_to_column('SampleID')Developmental stage
set.seed(123)
adonis_stage <- adonis(abund_tab ~ Stage, data = group_tab, permutations = 1000, method = 'bray')
adonis_stagePermutation: free
Number of permutations: 1000
Terms added sequentially (first to last)
Df SumsOfSqs MeanSqs F.Model R2 Pr(>F)
Stage 3 3.9545 1.31815 12.676 0.60335 0.000999 ***
Residuals 25 2.5997 0.10399 0.39665
Total 28 6.5541 1.00000
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Tissue
set.seed(123)
adonis_tissue <- adonis(abund_tab ~ Tissue, data = group_tab, permutations = 1000, method = 'bray')
adonis_tissuePermutation: free
Number of permutations: 1000
Terms added sequentially (first to last)
Df SumsOfSqs MeanSqs F.Model R2 Pr(>F)
Tissue 4 3.6108 0.90270 7.3607 0.55092 0.000999 ***
Residuals 24 2.9433 0.12264 0.44908
Total 28 6.5541 1.00000
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1Pairwise Permanova
Developmental stage
set.seed(123)
ppermanova_stage <- pairwise.perm.manova(vegdist(abund_tab, method = 'bray'), group_tab$Stage, nperm = 1000, p.method = 'bonferroni')
ppermanova_stage
Pairwise comparisons using permutation MANOVAs on a distance matrix
data: vegdist(abund_tab, method = "bray") by group_tab$Stage
1000 permutations
Larva Pupa Adult
Pupa 0.042 - -
Adult 0.012 0.156 -
Eggs 0.006 0.048 0.006
P value adjustment method: bonferroni Tissue
set.seed(123)
ppermanova_tissue <- pairwise.perm.manova(vegdist(abund_tab, method = 'bray'), grouping$Tissue, nperm = 1000, p.method = 'bonferroni')
ppermanova_tissue
Pairwise comparisons using permutation MANOVAs on a distance matrix
data: vegdist(abund_tab, method = "bray") by grouping$Tissue
1000 permutations
Eggs Gut Haemolymph Ovarium
Gut 0.02 - - -
Haemolymph 0.01 0.04 - -
Ovarium 0.16 0.15 0.52 -
Ovipositor 0.06 0.03 1.00 0.87

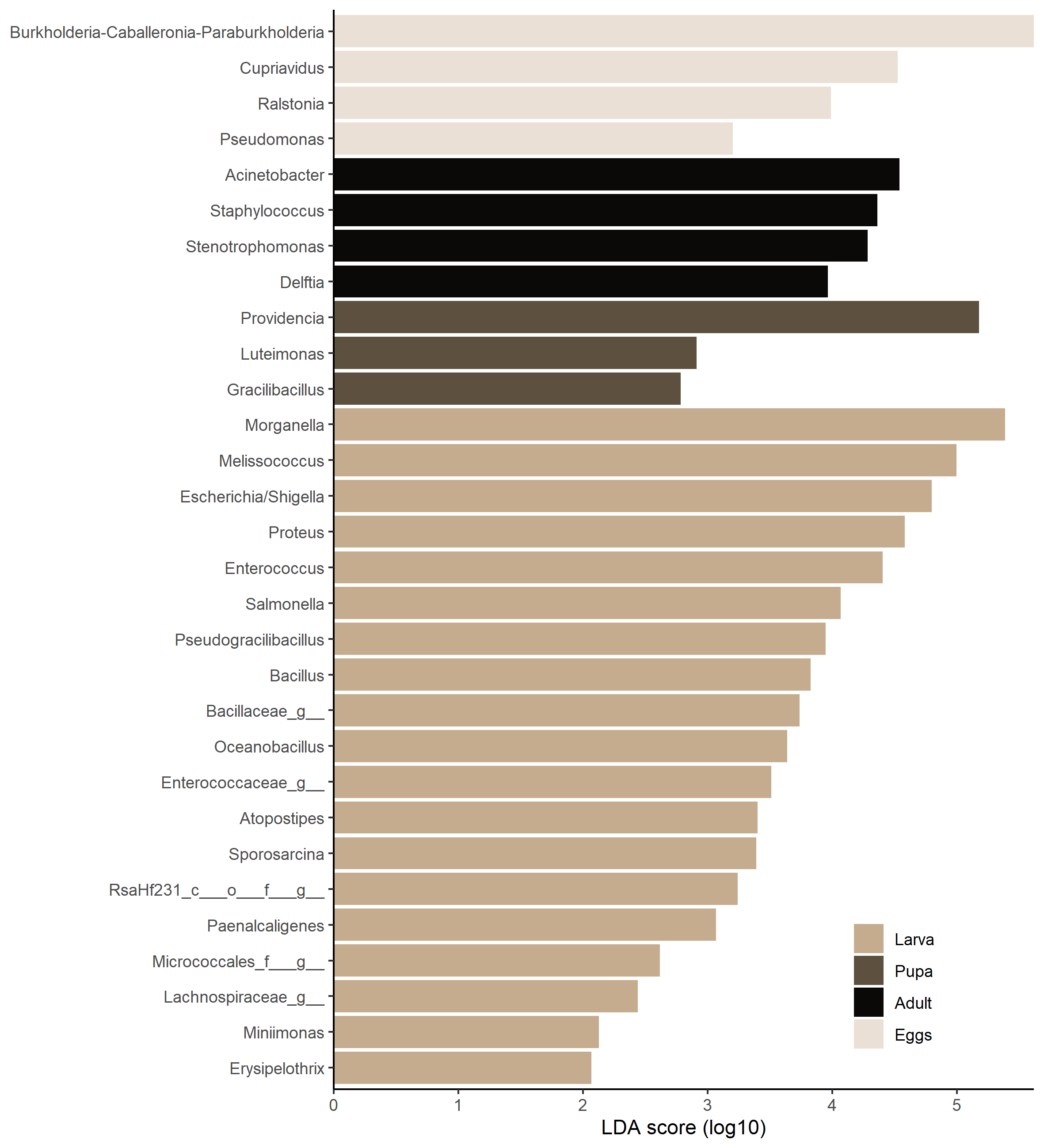

P value adjustment method: bonferroni LefSe
lefse <- run_lefse(ps.rarefied,
group = 'Stage',
taxa_rank = 'Genus')Plot
plot_ef_bar(x) +
scale_fill_manual(values = cols_stage) +
theme_classic() +
theme(legend.title = element_blank(),
legend.position = c(0.8, 0.1))
click figure to see larger version

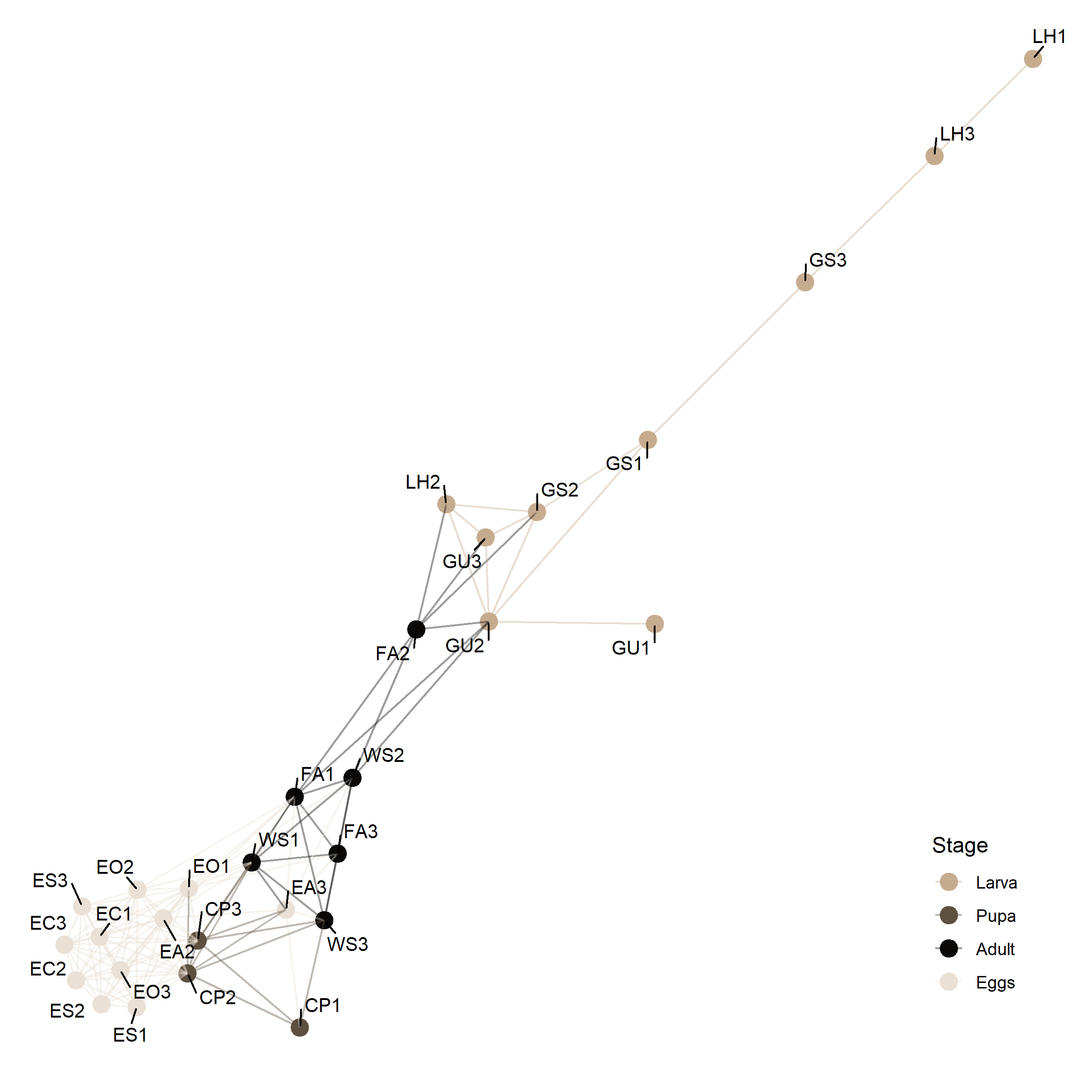

Network
library(ggrepel)
set.seed(100)
ig <- make_network(ps.rarefied, max.dist = 0.5, distance = 'bray')
plot_network(ig, ps.rarefied, color = 'Stage', point_size = 4, type = 'samples', label = NA) +
geom_text_repel(aes(label = value), size = 3.5, box.padding = 0.5) +
scale_colour_manual(values = cols_stage) +
theme(legend.position = c(0.8, 0.2))
click figure to see larger version
Data download
Sequence data
All sequence data generated within this study can be obtained via the BioProject accession number PRJNA809118. The dataset contains 30 samples from eggs, larvae, pupae, and adults of the black soldier fly sequenced with bacteria and fungi-specific primers.
Metadata
This table provides all metadata used in this study.
Explanation of metadata variables
This table provides an explanation of the variables presented in the metadata table.

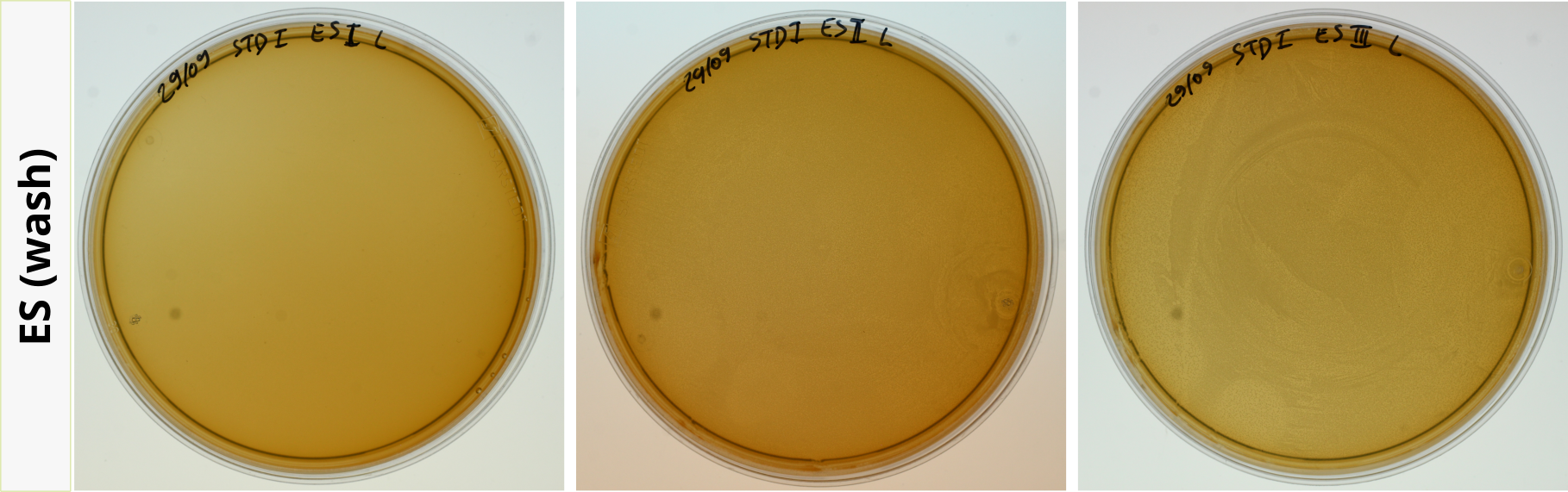

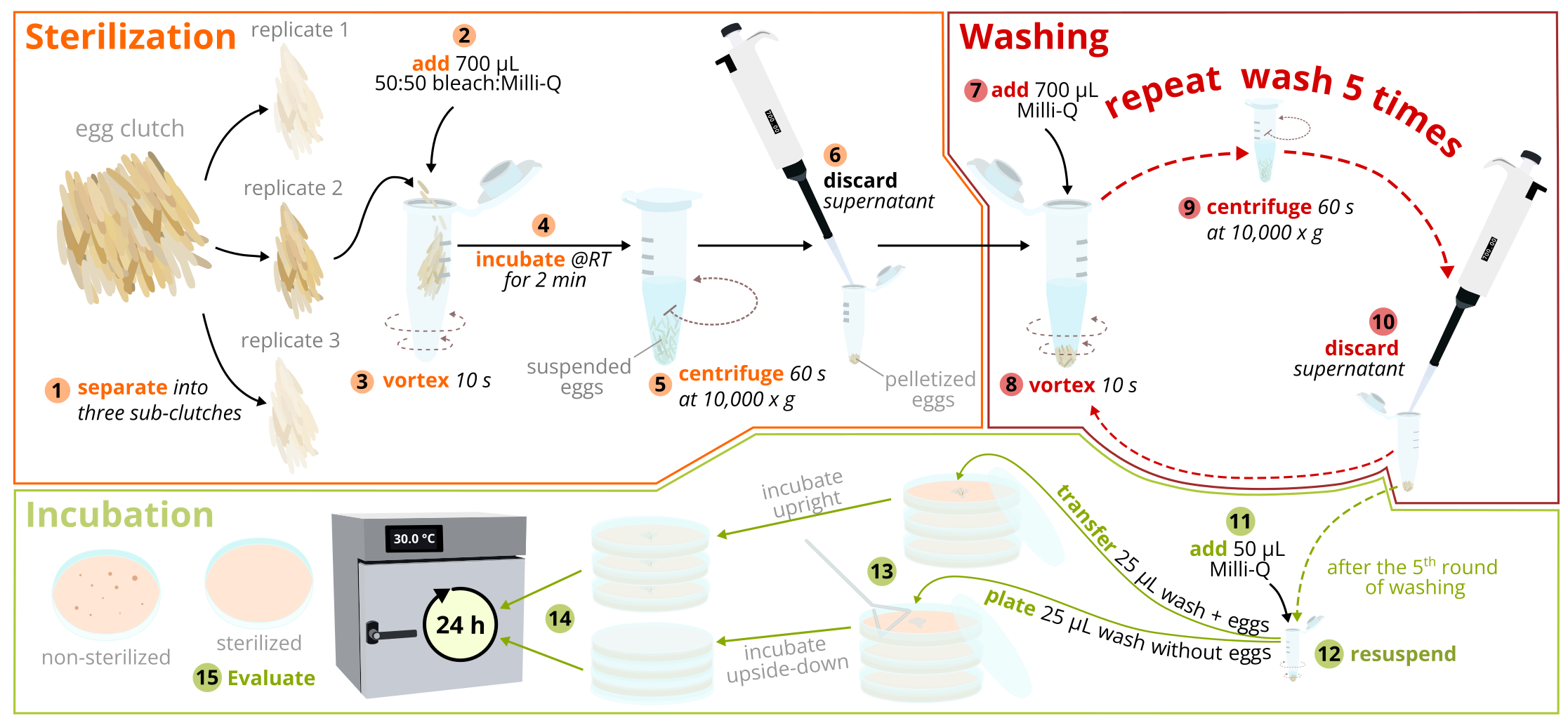

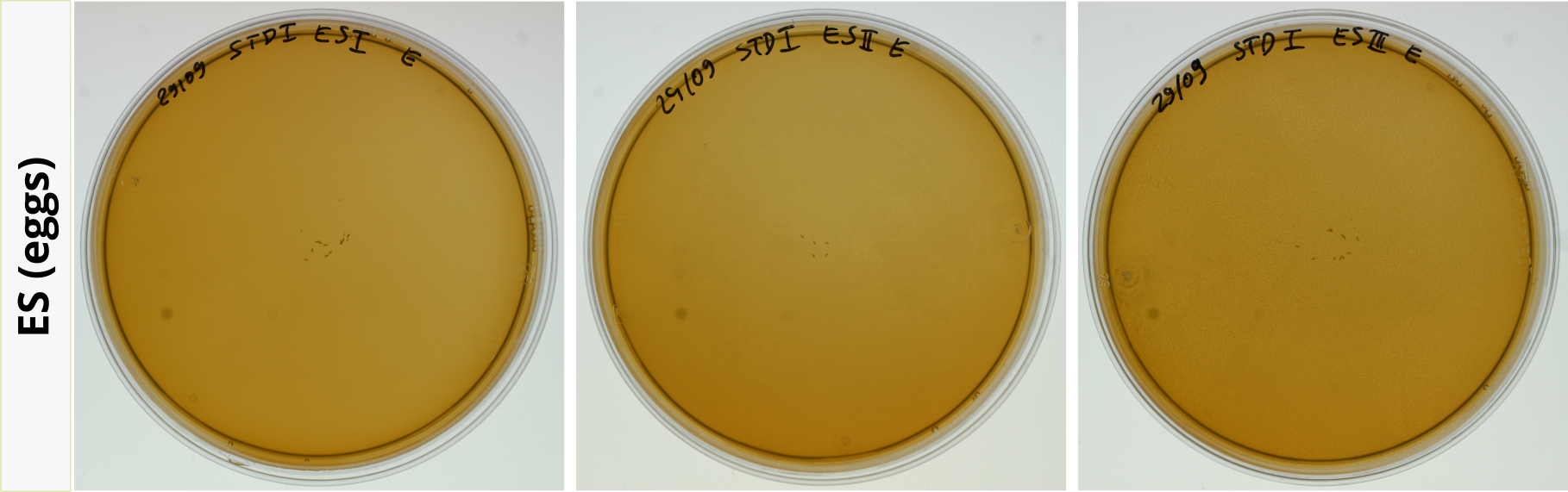

Sterilization protocol
click figure to see larger version
click figure to see larger version
click figure to see larger version
click figure to see larger version
click figure to see larger version
